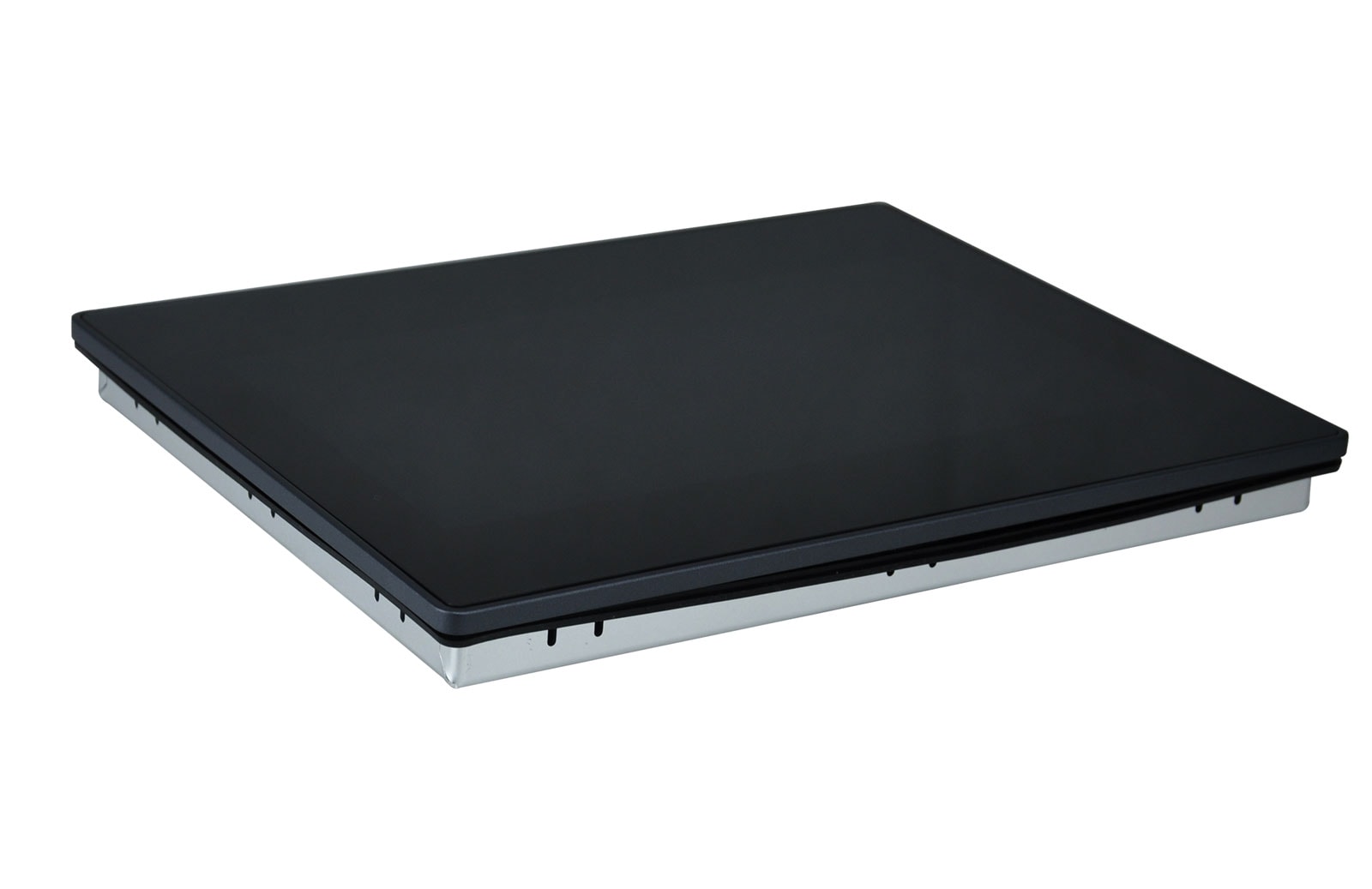

HMI 显示屏 15.6寸
HMI显示屏是连接工业领域OT和IT信息的关键桥梁，使工厂生产管理更加清晰透明，设备服务更加及时高效！支持有线和无线多种通信模式，支持广域网和局域网的多种接入方式，智能适应较优网络，可以显著提高网络连接覆盖率。HMI系列显示屏使设备不再是孤立的信息孤岛。
功率范围
4.3 寸
输入电压
9-36±10%VDC
产品概述
技术规范
| Part Number | MG1501NE | |
| Module | Index | Parameters |
| Display | LCD display | 15.6 inch TFT |
| resolutions | 1920×1080 | |
| Brightness | 220cd/㎡ | |
| contrast | 500：1 | |
| backlight | LED | |
| Backlight life | ＞35,000 hours | |
| color | 16.77M | |
| Visua Angle | 80/80/80/80 | |
| Touch | Touch Screen | 4-wire resistive type |
| Touch accuracy |
Length (x-axis) ±2%; Width (y-axis) ±2% |
|
| Memory | Flash | 1G |
| RAM | 8G DDR3 | |
| CPU | ARM Cortex-A53 Four core 1.5GHz | |

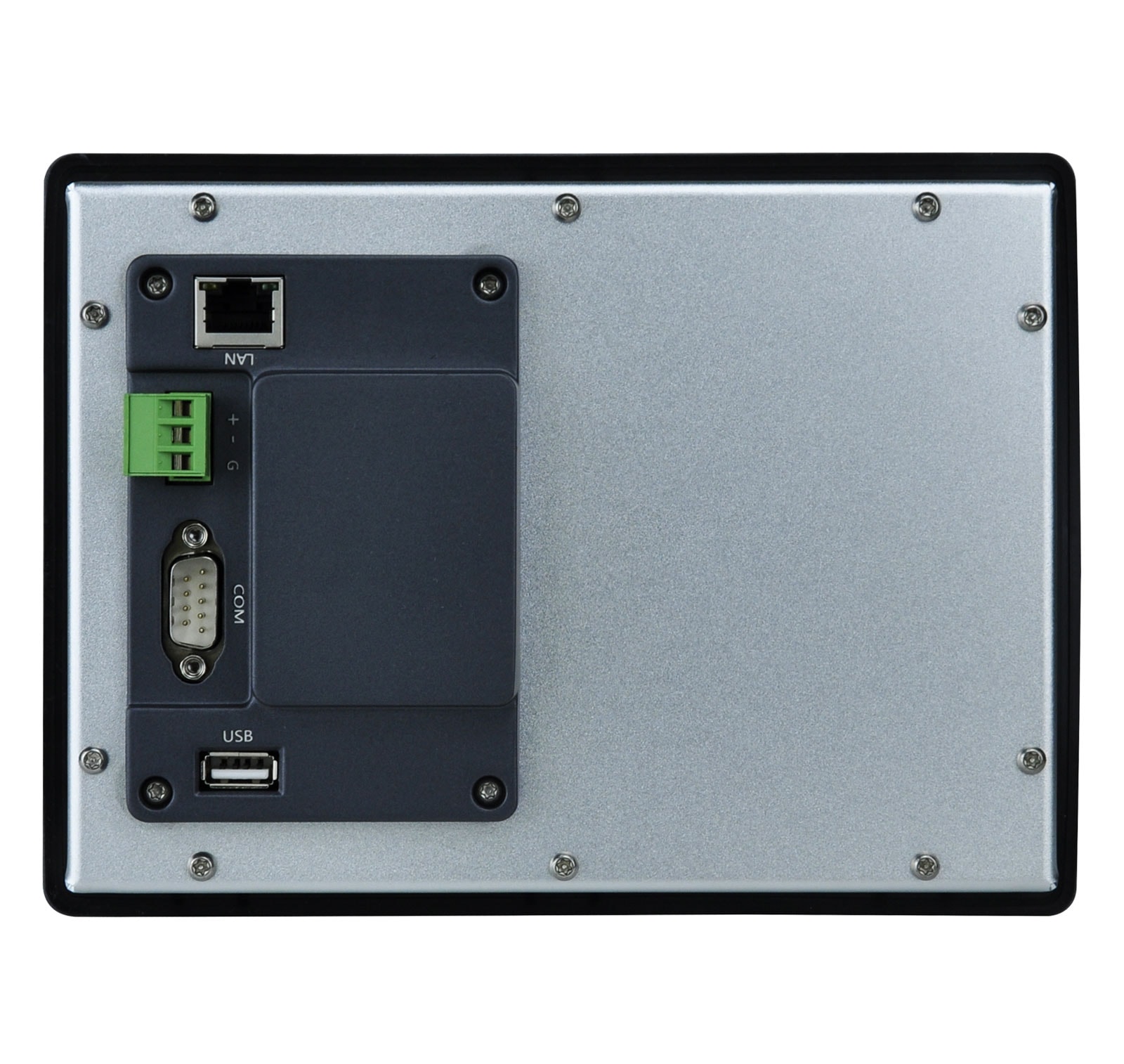

| Communication ports | USB Host | USB 2.0*1 |
| RS-232 | COM1 | |
| RS-485 | COM2：2W/4W；COM3：2W | |
| Ethernet | 10/100Mbps self-adaption | |
| 4G Remote | Extensible | |
| RTC | Built-in real-time clock | |
| Power | Input Voltage | 9-36±10%VDC |
| Rated power | 10W (420mA@24VDC) | |
| Power Isolation | Built-in | |
| Withstand voltage | 500VAC for one minute | |
| Insulation Impedance | 50MΩ@500VDC | |
| Structure | Dimension | 395*258*52mm |
| Packed Dimension | ||
| Hole | 384*247mm | |
| Mounting | Panel Mounting | |
| Weight | About Kg with inner box | |
| Shell Material | Metal | |
| Mechanical Vibration | 10 to 25Hz（X axis、Y axis、Z axis 2G 30 minutes） | |
| Operating Environment | IP Grade | Panel：IP65；Rear cover：IP20 |
| Temperature | 0-50℃（32°-122°F） | |
| Humidity | 10%-90% (No condensation) | |
| Storage Temperature | -20-60℃（-4°--144°F） | |
| Certification | CE | Comply with CE standards |
| Software | Smart Manager PRO V2.05 or updated version | |
